Products >> Hotel Card Switch >> 125KHz T57 Universal

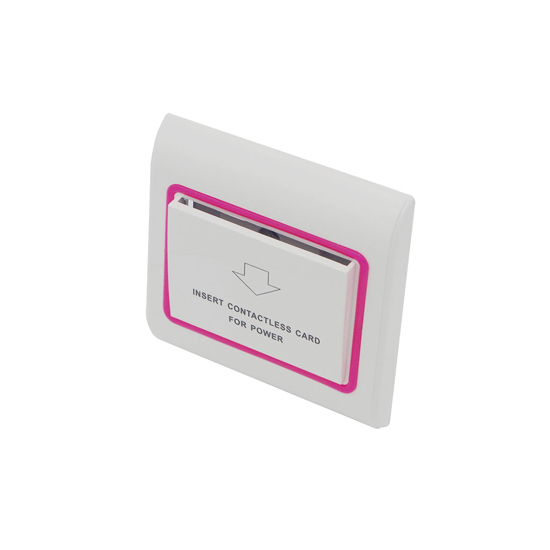

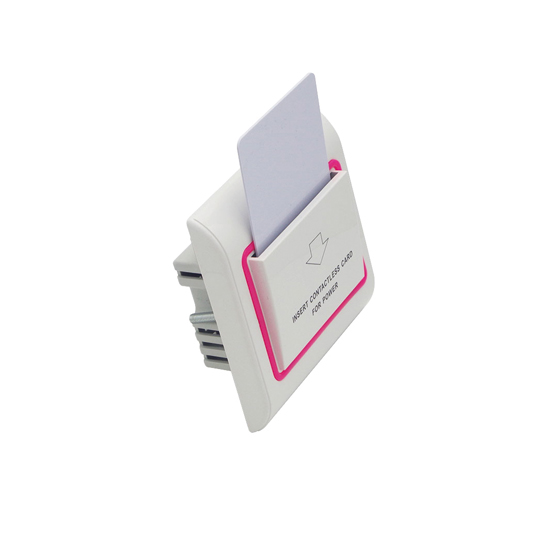

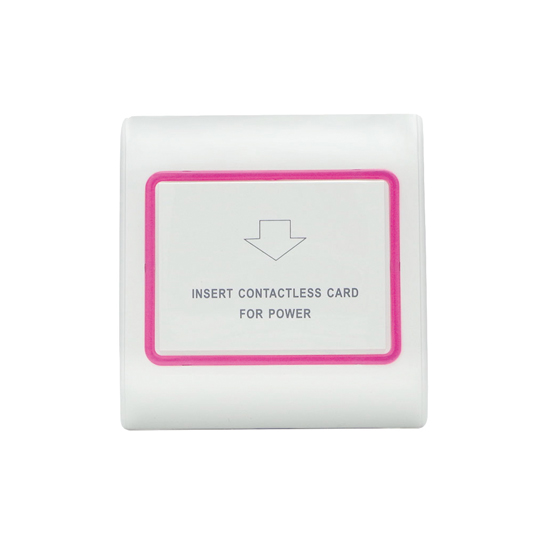

AT101 White Panel Red Edge
- Product No.:202059174744
- Price:11$
- Color:White Panel
- Material:PC Plastic
- Size:86*86mm
- Open Way:Insert 125KHz Card to Take Power
- Application:Hotel/Motel/Apartment/Flat/School/Office
AT101 series switch is a kind of hotel energy saving switch, it is widely used for hotel guest room, almost by a standard equipment for hotel guestroom. It helps hotels to save energy, guest or visitor need to insert their key card to take power, when they go out or leave room, key card must be taken away in order to open door when come back. All power will be cut down after 15 seconds while key card take out.
Our Switch Model Name Rule:
For example:
AT101: "T101" means T57 type; "1" means type 1;
AT201: "T201" means T57 type; "2" means type 2;
AM103: "M103" means Mifare S50 type; "1" means type 3;
AM203: "M203" means Mifare S50 type; "2" means type 4;
AT101 series hotel card switch have 4 types:
1, 125KHz Temic or T57
2, 125KHz T57 Programmable
3, 13.56MHz Mifare S50 or M1
4, 13.56MHz Mifare S50 or M1 Programmable
Introducing:
Type 1: Only 125KHz cards, like TK4100, EM4200, EM4100, T5577, T5567, EM4305 cards can take power, other cards can not function.
Type 2: Must be programmed by our hotel lock system before using, and only correct guest room key card in valid time can take power, any other cards can not function.
Type 3: Only 13.56MHz cards, like Mifare S50, F08, Mifare S70, Mifare Ultralight cards can take power.
Type 4: Must be programmed by our hotel lock system before using, and only correct guest room key card in valid time can take power, any other cards can not function.
Type 2 and Type 4 need to work with our hotel lock system, it requests other equipments or devices including encoder, key card, software, hotel locks.
Type 2 is for 125KHz temic or t57 system, type 4 is for 13.56MHz Mifare S50 or M1 system.
Progammable switch suitable for star or high-end hotels, that have no limit for check-out time. It remind guests or visitor it is time to check-out, need to extend check-in time or need to leave hotel asap.
Please selet types according to your detailed request.
Switch Panel Size: 86*86mm, standard CR86 size
Color Optional: White
Panel Material: PC Material, fireproof material
Hotel Lock System: proUSB (type 2 and type 4)
Frequency: 125KHz / 13.56MHz
System Type: 125KHz T57 or 13.56MHz Mifare S50
Key Card: T5577 Card / Mifare S50 Card
Voltage: AC 180~250V
Power Off Delay Time: 15 seconds
Maximum Current: 30A (40A or other customized current optional)
Logo Printing: Support (Silkscreen printing or laser logo)
