Products >> Hotel Lock >> Economic Hotel Lock

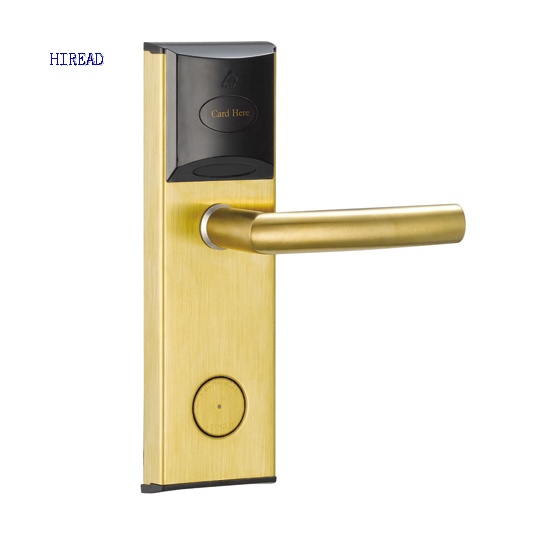

Hotel Lock 118E-S1

Product No.：20205519159
Color：Gold/Silver
Material：Stainless Steel
Size：242*77*69mm
Open Way：Card+Mechanical Key
Application：Hotel/Motel/Apartment/Flat/School/Office
Online Inquiry

hireadlock 118e s1 hotel lock introducing

118E-J/Y-S1 Introducing:
118E-J/Y-S1 model is a kind of economic model for small or chain hotels, motels, aparments and flats, which is cheaper and easier to install.
The material of 118E-J/Y-S1 panel is stainless steel, it is suitable for rooms near seaside or humid situation, not easy to get rust.

118E-S1 Features:
Lock Size: 242*77*69mm

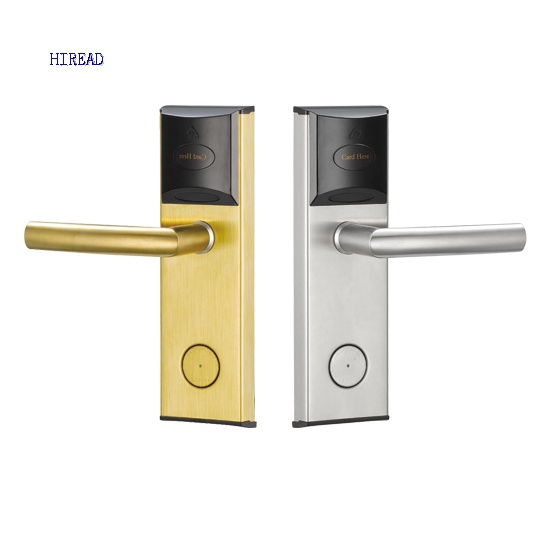

Color Optional: Technology Silver / Gold
Panel Material: Stainless Steel
Hotel Lock System: proUSB / TTLock / Tuya
Frequency: 125KHz / 13.56MHz
System Type: 125KHz T57 or 13.56MHz Mifare S50
PCB Type: Temic or M1
Key Card: T5577 Card / Mifare S50 Card
Default Mortise: 3# Short Mortise
Power Supply: DC 6V 4pcs AA Battery
Open Lock Ways: Read Keycard / Blutooth/ Mechanical Key

118E-S1 Hotel Lock And Mortise Size:
hireadlock 118e s1 hotel lock size

Optional Mortise Size:
hireadlock optional mortise 4# picture and size

Mortise Introducing:
There are 2 mortises for optional: Mortise 3# and Mortise 4#
Mortise 3# is default mortise, widely used for wood doors.
Mortise 4# is for optional, for some thinner wood doors, or upgrade mechanical door locks. Europe market likes to use thinner mortise.

Cylinder:
hireadlock cylinder picture and introducing

We upgrade the cylinder of mortise, it is much easier to install, and economic to replace if keys lost or hotels owner changed.

Part List:

Lock Front Panel	1pc
Lock Back Panel	1pc
Mortise(Default 3#)	1pc
Cylinder	1pc
Mechanical Keys	2pcs
Door Holder	1pc

*Accessories can be provided for replacing broken parts.
Installation Guide:

Click here to download installation guide document in PDF.
Function Introducing:

There are 5 function types of this lock model for your optional:
1, ProUSB Hotel Lock
2, M1-ID Independent Lock
3, ProUSB+Tuya APP Bluetooth Lock
4, Tuya APP Bluetooth Lock
5, TTLock APP Bluetooth Lock

Opening Direction:
hireadlock hotel lock open direction
