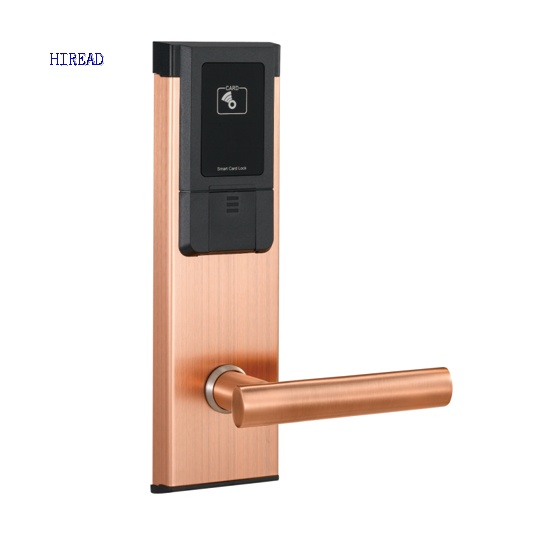

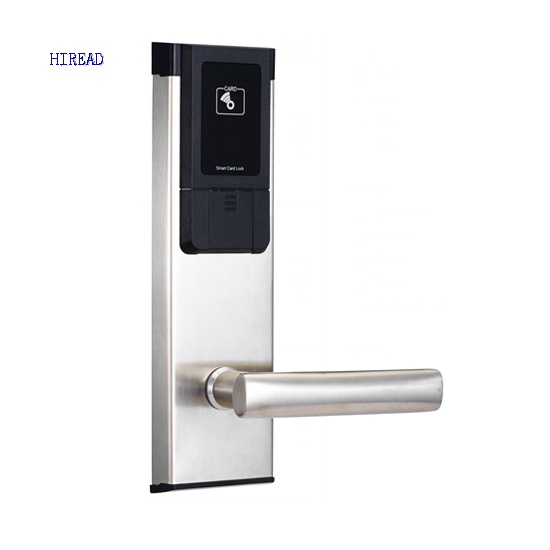

Hotel Lock 118E-S6
- Product No.：20205523414
- Material：Stainless Steel
- Open Way：Card+Mechanical Key

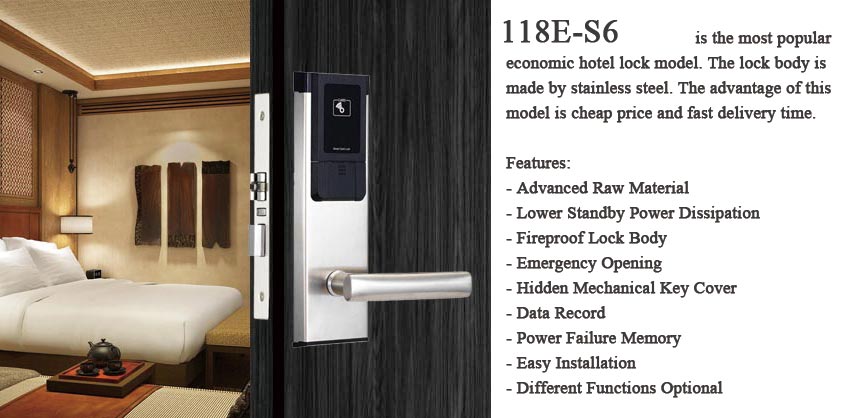

118E-S3 model is a kind of economic model for small or chain hotels, motels, aparments and flats, which is cheaper and easier to install.
The material of 118E-S3 panel is stainless steel, it is suitable for rooms near seaside or humid situation, not easy to get rust.
Lock Size: 267*76*80mm

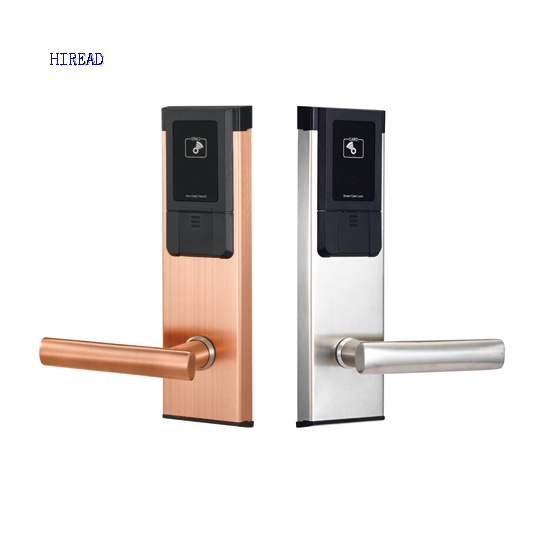

Color Optional: Technology Silver / Gold / Black
Panel Material: Stainless Steel
Hotel Lock System: proUSB / TTLock / Tuya
Frequency: 125KHz / 13.56MHz
System Type: 125KHz T57 or 13.56MHz Mifare S50
PCB Type: Temic or M1
Key Card: T5577 Card / Mifare S50 Card
Default Mortise: 3# Short Mortise
Power Supply: DC 6V 4pcs AA Battery
Open Lock Ways: Read Keycard / Blutooth/ Mechanical Key

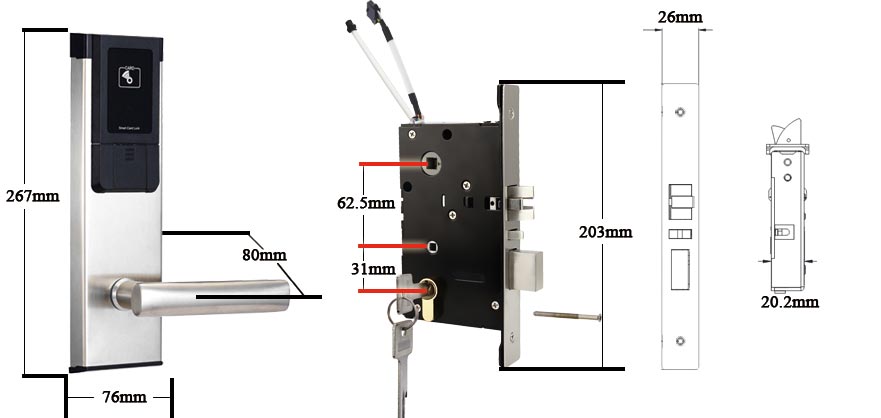

118E-S6 Hotel Lock And Mortise Size:
Optional Mortise Size:
There are 2 mortises for optional: Mortise 3# and Mortise 4#
Mortise 3# is default mortise, widely used for wood doors.
Mortise 4# is for optional, for some thinner wood doors, or upgrade mechanical door locks. Europe market likes to use thinner mortise.
|Lock Front Panel||1pc|
|Lock Back Panel||1pc|
*Accessories can be provided for replacing broken parts.
Click here to download installation guide document in PDF.
There are 5 function types of this lock model for your optional:
1, ProUSB Hotel Lock
2, M1-ID Independent Lock
3, ProUSB+Tuya APP Bluetooth Lock
4, Tuya APP Bluetooth Lock
5, TTLock APP Bluetooth Lock
