  • Hotel Lock 118E-S3
  • Hotel Lock 118E-S3
  • Hotel Lock 118E-S3
Hotel Lock 118E-S3 Hotel Lock 118E-S3 Hotel Lock 118E-S3

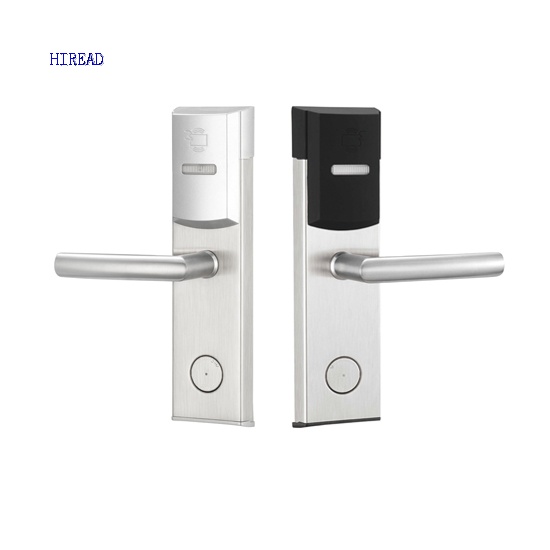

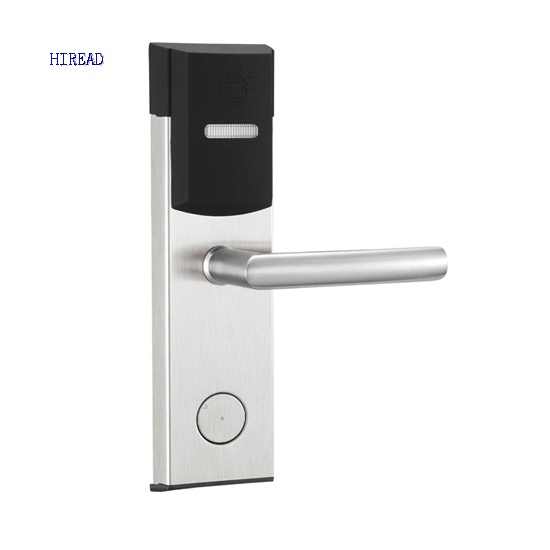

Hotel Lock 118E-S3

  • Product No.:202055231124
  • Color:Black/Silver
  • Material:Stainless Steel
  • Size:308*77*67mm
  • Open Way:Card+Mechanical Key
  • Application:Hotel/Motel/Apartment/Flat/School/Office
  • Online Inquiry

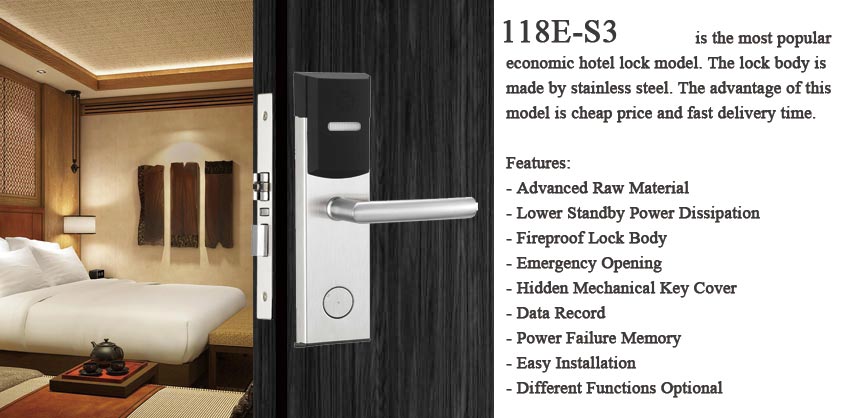

hireadlock 118e-S3 hotel lock introducing
118E-S3-Y/B Introducing:
118E-S3 model is a kind of economic model for small or chain hotels, motels, aparments and flats, which is cheaper and easier to install.
The material of 118E-S3 panel is stainless steel, it is suitable for rooms near seaside or humid situation, not easy to get rust.
118E-S3 Features:
Lock Size:
Color Optional: Technology Silver / Gold / Black
Panel Material: Stainless Steel
Hotel Lock System: proUSB / TTLock / Tuya
Frequency: 125KHz / 13.56MHz
System Type: 125KHz T57 or 13.56MHz Mifare S50
PCB Type: Temic or M1
Key Card: T5577 Card / Mifare S50 Card
Default Mortise: 3# Short Mortise
Power Supply: DC 6V 4pcs AA Battery
Open Lock Ways: Read Keycard / Blutooth/ Mechanical Key

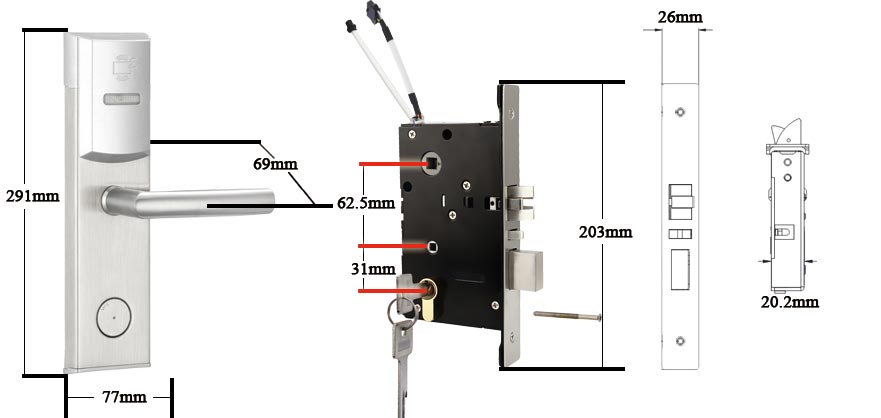

118E-S2 Hotel Lock And Mortise Size:
hireadlock 118E-S3 Hotel lock and mortise size
Optional Mortise Size:

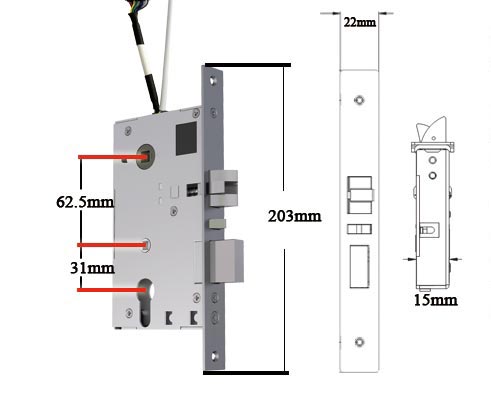

hireadlock optional mortise 4# picture and size
Mortise Introducing:
There are 2 mortises for optional: Mortise 3# and Mortise 4#
Mortise 3# is default mortise, widely used for wood doors.
Mortise 4# is for optional, for some thinner wood doors, or upgrade mechanical door locks. Europe market likes to use thinner mortise.

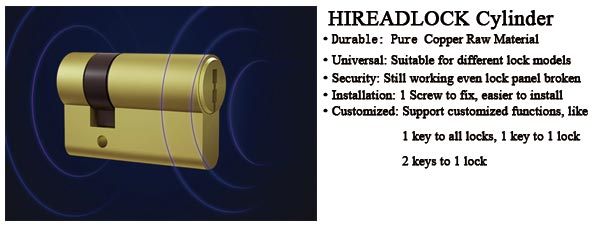

hireadlock cylinder picture and introducing
Part List:
Lock Front Panel 1pc
Lock Back Panel 1pc
Mortise(Default 3#) 1pc
Cylinder 1pc
Mechanical Keys 2pcs
Door Holder 1pc

*Accessories can be provided for replacing broken parts.
Installation Guide:

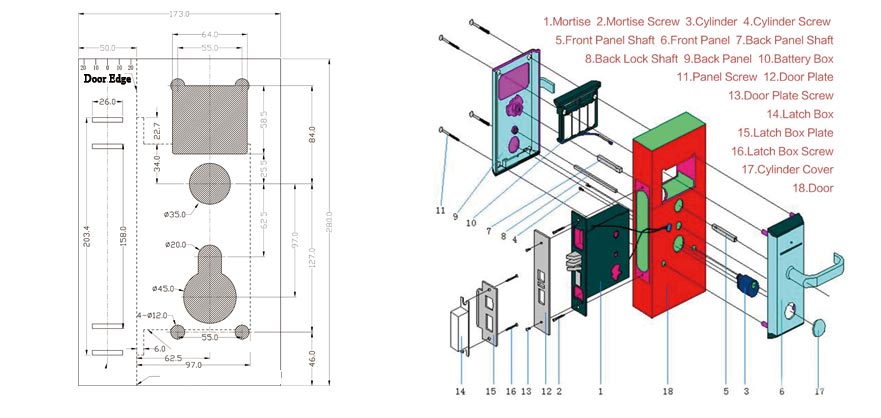

hireadlock 118e s1 installation guide
Click here to download installation guide document in PDF.
Function Introducing:

There are 5 function types of this lock model for your optional:
1, ProUSB Hotel Lock
2, M1-ID Independent Lock
3, ProUSB+Tuya APP Bluetooth Lock
4, Tuya APP Bluetooth Lock
5, TTLock APP Bluetooth Lock
Opening Direction:
hireadlock hotel lock open direction

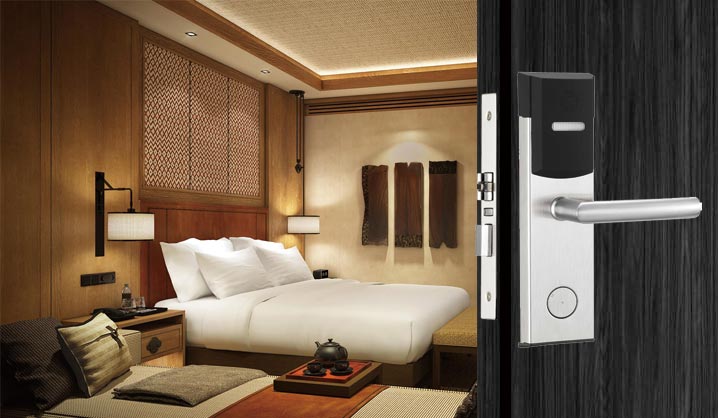

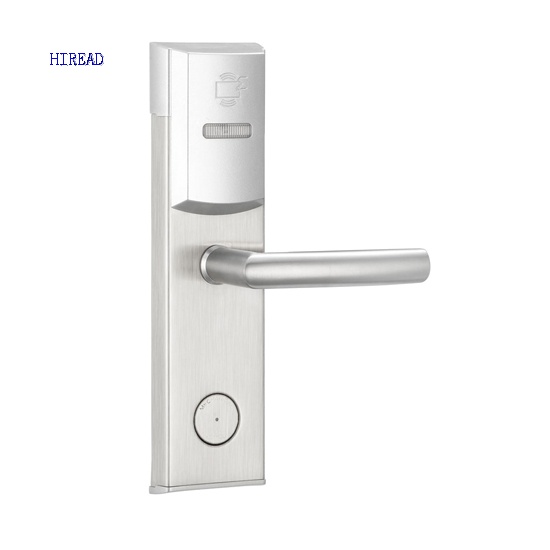

hireadlock 118E-S3 hotel lock
hireadlock hotel lock applications
